Gates, panels, and pens

Gates, panels, and pens

Different animals require different types of panels and gates.  All panels may be configured into pens.

All panels

  • Panels are versatile and easy to configure.
  • Pinning mechanism allows pinning in multiple ways (e.g., 2-way, 3-way, or 4-way joints).
  • Gates are easy to open and close.
  • Wall brackets are available to attach pens/panels/gates to a wall.
  • For animals that leap, a top panel is available.

Mesh panels for pigs, sheep, goats, and exotics.

  • 1 1/2" 14 ga round tubing is welded to 4 ga 4"x4" wire mesh.
  • Standard height is 46"
  • Standard leg for pigs is 1" from ground up with tab for securing to concrete.
  • Standard leg for sheep and goats is 4" from ground.
  • Standard lengths are 4', 5', 6', 7', 8', 10', 12', 14', 16', 18', and 20'.
  • Special lengths can be made.

Sheeted panels for sheep, goats, and exotics.

  • 14 ga 1"x1" square tube is used for the uprights.
  • 1" 14 ga round tubing is used for the 3 horizontals.
  • Sheeting is 16 ga sheet metal.
  • Standard height is 46".
  • Standard leg for sheep and goats is 4" from ground.
  • 12" drop on top is available, also.
  • Standard lengths are 4', 5', 6', 7' 8', 10', 12', 14', 16', 18', and 20'.
  • Special lengths can be made.

Tube-style panels for sheep, goats, and exotics.

  • 14 ga 1"x1" square tube is used for the uprights.
  • 1" 14 ga round tubing is used for the horizontals.
  • Standard height is 46" or 40" with 8 horizontals.
  • 40" tall panels with 7 horizontals are available.
  • Standard leg for sheep and goats is 4" from ground.
  • Standard lengths are 4', 5', 6', 7' 8', 10', 12', 14', 16', 18', and 20'.
  • Special lengths can be made.

Vertical upright panels for pigs

  • Made from 1 1/2" 14 ga round tubing for outside frame.
  • 3/4" 16 ga round tubing for vertical uprights with 4" between.
  • Standard height is 36"
  • Standard leg for pigs is 1" from ground up with tab for securing to concrete..
  • Standard lengths are 4', 5', 6', 7' 8', 10', 12', 14', 16', 18', and 20'.
  • Special lengths can be made.
  • A rod may be added to side panels on which to hang a feeder.

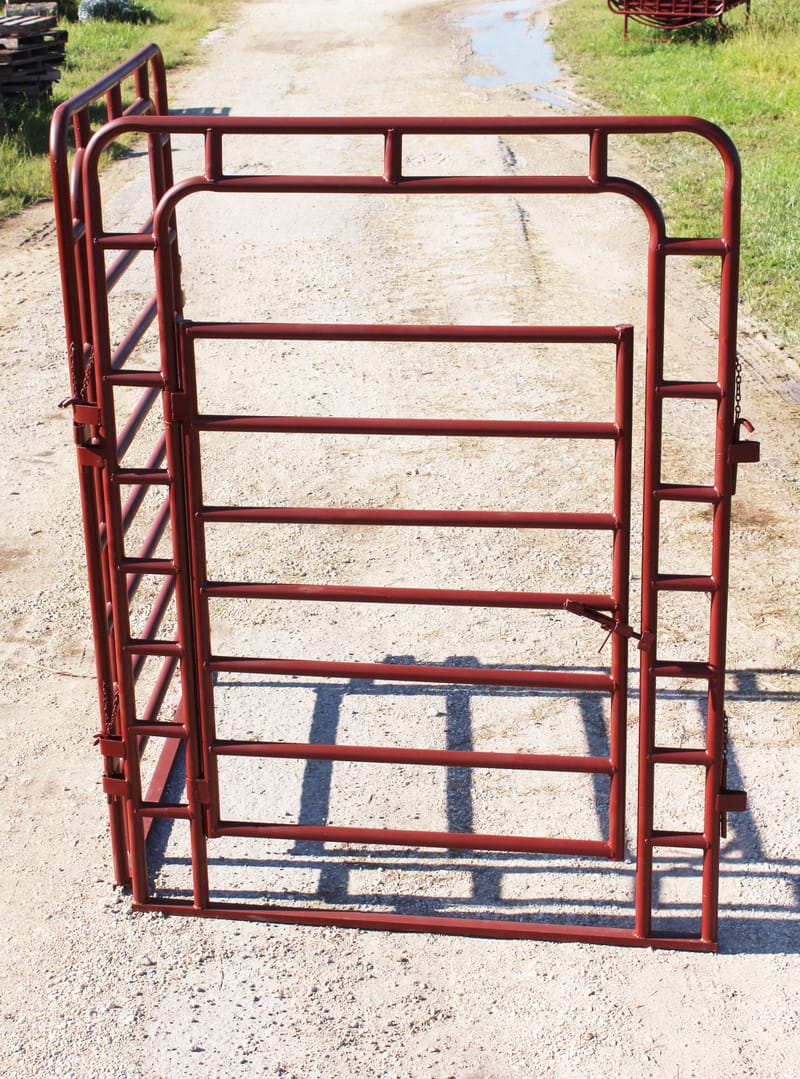

Walk-through gates for pigs, sheep, goats, and exotics.

  • Can be made with mesh, horizontal tubing, sheeted gates, or vertical upright tube panels.
  • Frame is made from 1 1/2" 14 ga round tubing for mesh and sheeted gates.
  • Tube style frame is made from 14 ga 1"x1" square tubing.
  • Height of frame is 79" from ground.
  • Free swing gates with a slide bolt latch is standard; other latches are available.
  • Ground clearance is 4" to bottom of the gate.
